VMC-1165H Comprehensive machining center

Top 'high rigid structure design' with high speed, robustness and extraordinary efficiency

1：The product is constantly being developed and updated,and the latest information shall prevail.

2：The product parameters are standard configurations.For other configurations,please call to inquire.

Order Hotline：+86 136 8667 3830

Product Parameters
Application Area
Product Characteristics

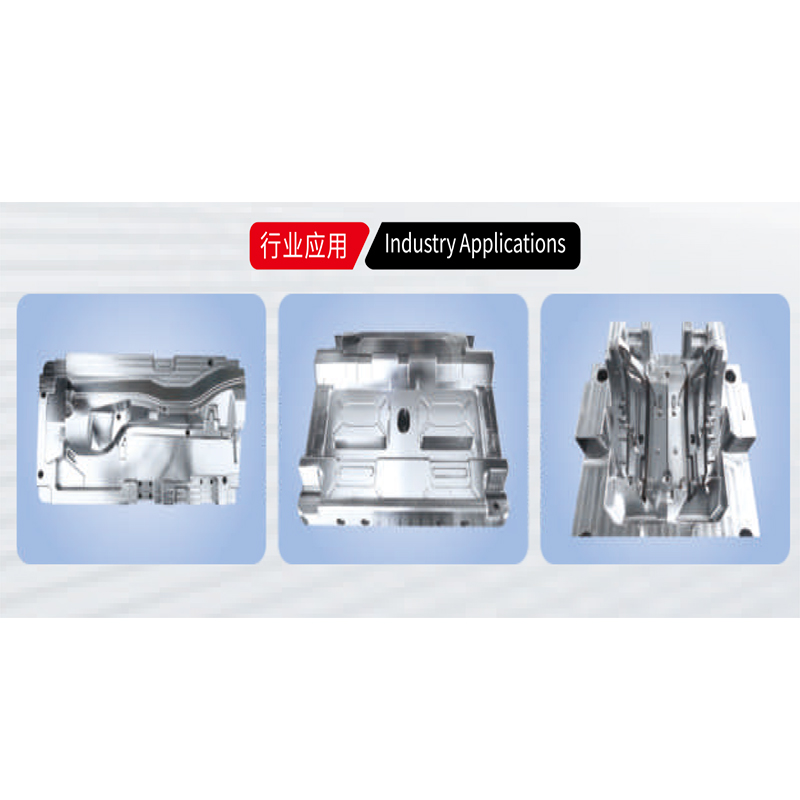

Processing Workpiece

Item	Spec.	unit	value
Travel	X/Y/Z axis travel	mm	1100/650/600
	Distance from Spindle nose to the top of the worktable	mm	130-730
	Distance from Spindle center to the surface of column guideway	mm	650
	Rail type		linear rail
Worktable	size（L*W)	mm	1200*600
	Max load	kG	800
	T-slot	Qty-width *pitch	5Pcs-18*100mm
Spindle	Spindle taper/bore	mm	BBT40/φ155
	Max Speed	Rpm	12000
	Transmission mode of spindle		Direct drive
Feed	X/Y/Z axis rapid displacement	M/min	36/36/36
Feed	Max feeding rate	mm/min	10000
Auto Tool Magazine	Exchanging type		Round disc typed
	Spec. of tool Stock	Type	BBT40/BT40
	Tool Library Capacity	PCs	24T
	Max diameter of tool(with neighbor tool)	mm	105
	Max diameter of tool（no neighbor tool）	mm	200
	Max length of single tool	mm	350
	Max load of single tool	KG	15
	Exchange time	Sec	4
Motor	Spindle motor	kva	11/15
	Axis x/y/z	kw	3/3/3
	Coolant pump capacity	m³/h	4-60
Accuracy	Positioning accuracy	mm	±0.005/300
Accuracy	Repeatable positioning accuracy	mm	±0.003/300
Power/Air supply	Power Input	KVA	25
Power/Air supply	Compressed air	Kg/c㎡	6-8
Machine Overall	Machine Dimension(LWH )	MM	250024002400
Machine Overall	Machine Weight	T	6

The specifications of this machine are subject to change without prior notice as the quality improves. Taijet reserves the right of final interpretation. For more information, please contact the corresponding sales staff.

Big Precision molds,

Big Precision parts,

Automotive,

Aerospace and defense,

Consume electronics,

Medical appliances.

1. The bed adopts Meehanite precision HT300 high grade cast iron, herringbone column design, stable structure.

2. The three-axis adopts Japanese THK high-precision screw guide rail to ensure the longevity of the machine tool.

3. The use of German Lenny oil proof wire: the wire interface integral die casting molding, strong signal interference resistance, good sealing, wire see oil soak for a long time will not harden, broken skin, good performance of the machine tool after years of use, low failure rate, enhance the service life of the machine tool line.

4. Taiwan double force punching cylinder: the punching force of the punching cylinder can reach 4 tons with three times the strength of the ordinary punching cylinder, which can improve the tool change speed and stability of the machine.

5. Taiwan double filter; The filter has automatic drainage function and secondary filtration function, which can purify the water of the machine tool gas path twice, enhance the pneumatic function of the machine tool and reduce the gas path failure of the machine tool.

6. Main accessories: The electric appliance used in the power distribution of the machine tool of our company is the same standard as Mazak parts (the same supplier). The hand wheel adopts the original Japanese brand.

7. Each machine has been tested by laser, cue instrument, multiple test processing and three dimensional detection before delivery.
